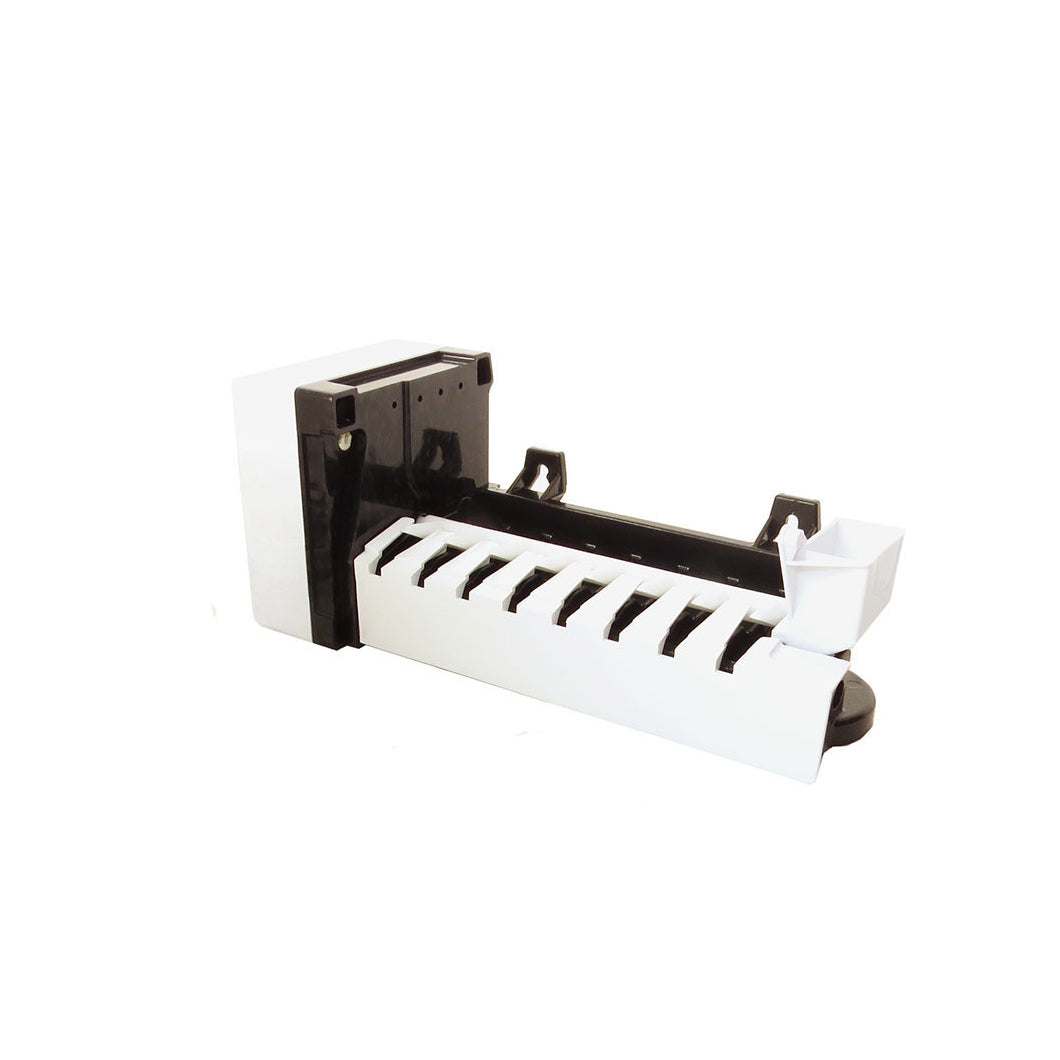

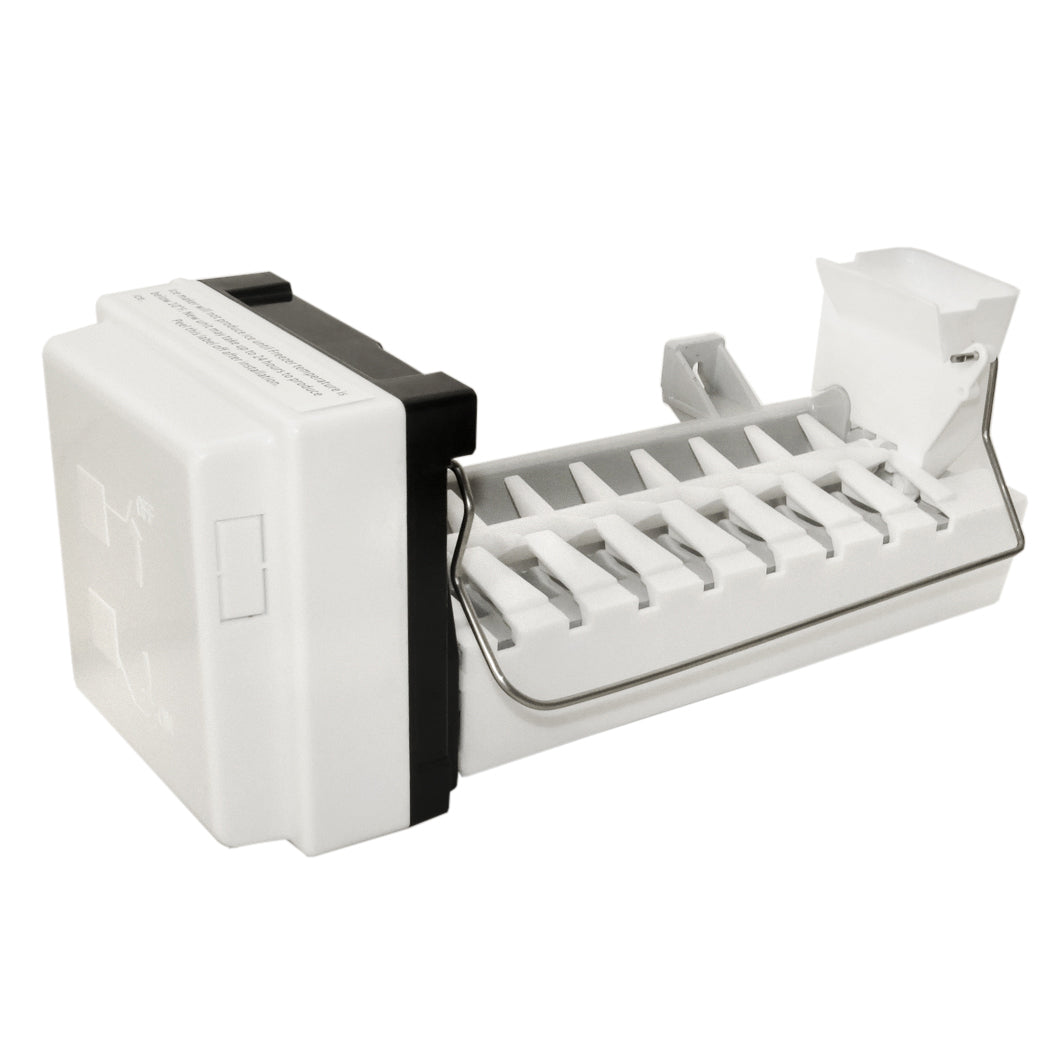

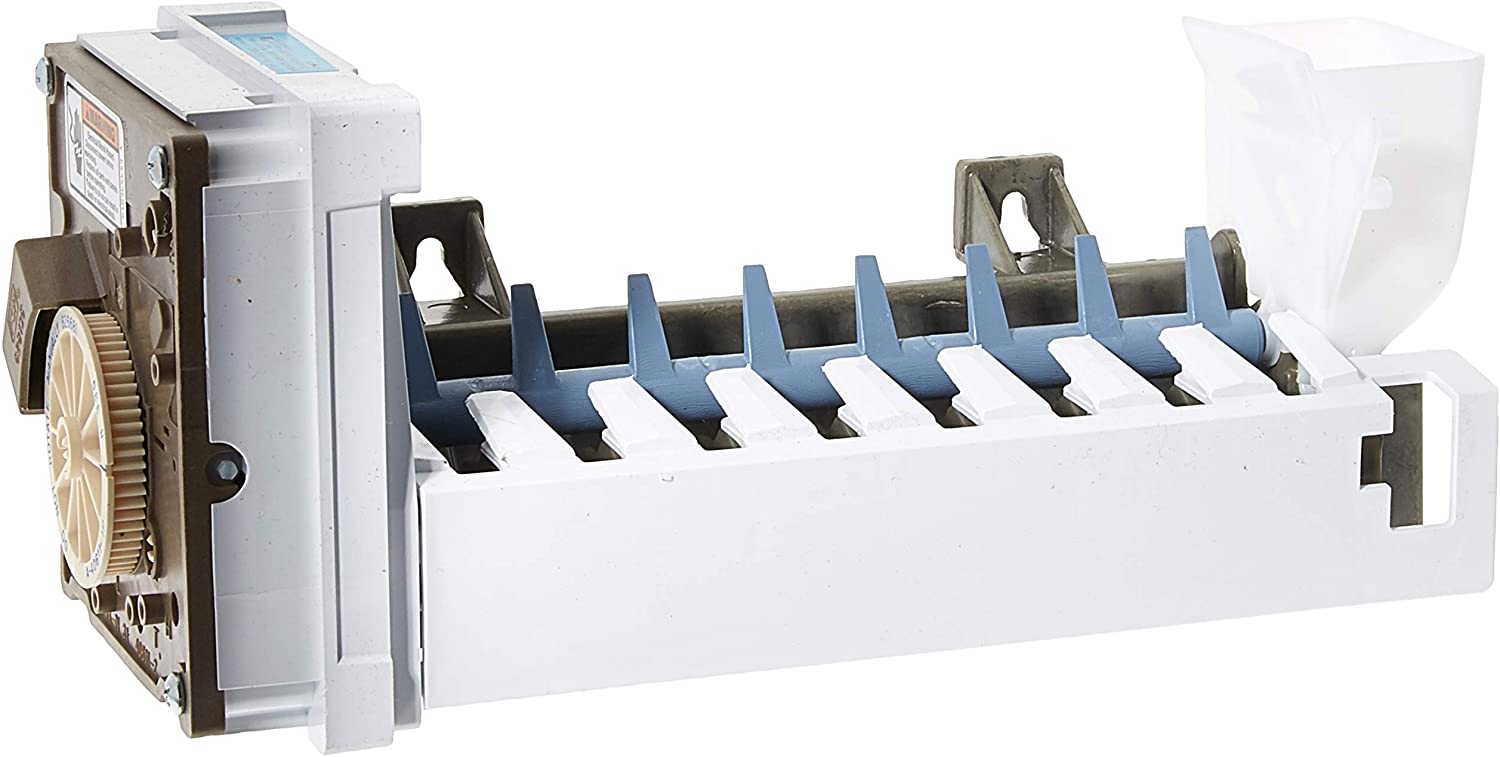

Whirlpool W10882923 Refrigerator Ice Maker Assembly Replacement

Replacement ice maker assembly used on some KitchenAid, Maytag, and Whirlpool refrigerator models.

Directly Replaces: W10882923, AP6037857, WPW10377151, W10377151, WPW10377147, W10377147, PS11769140.

Specifications:

• 8-cube ice maker with bail arm.
• May differ in appearance from original part due to manufacturer changes.
• Newly designed ice maker no longer requires additional harnesses, nor does it use the "H" plug used on some models. Depending on refrigerator model, the ice maker plugs directly into the unit using the attached short harness, or by removing the short harness and connecting the unit directly to the ice maker. For models that have an "H" plug harness: Since the "H" plug is no longer used, it can be placed inside the module head (disconnected), to keep it out of the way.
