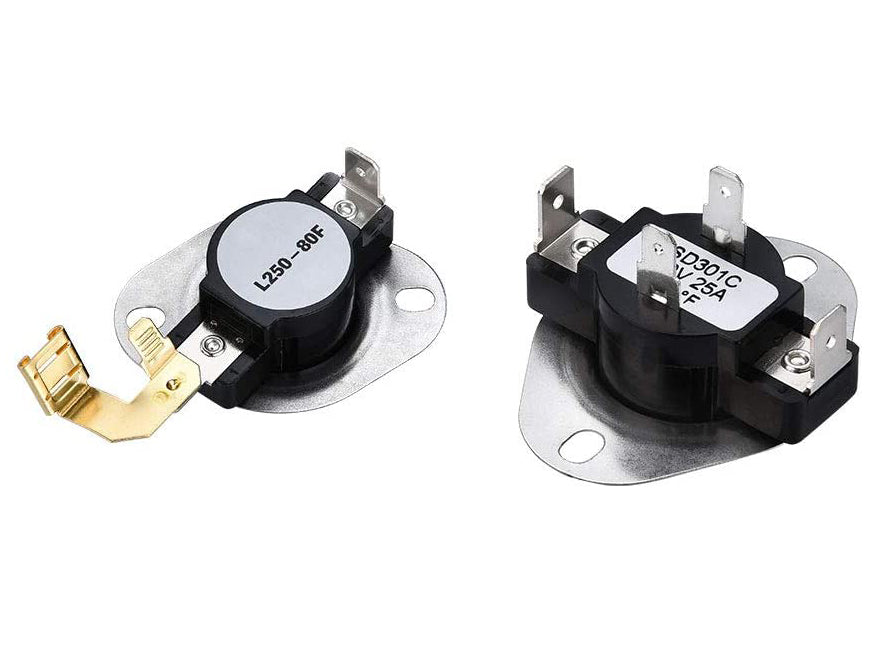

Whirlpool 3387134 3977767 Dryer Thermostat Kit Replacement

Replacement cycling thermostat and limit thermostat used on some Whirlpool dryer models.

Directly Replaces: WP3387134, 3387134, AP3131939, 306910, 2893, 3-6910, 3387135, 3387139, ET187, PS344510, WP3977767, AP6009043, 3977767, 3399693, ER3977767, PS11742185, SET185, TJ90SET185, WP3977767VP, B008DJVSXS, B00PDXAQH6, B009HAFMI4, B0081EAP5W, B00PDXAMMK, B00LW6VH58, B00IQ9VKV0, B0156N9ZRO, B00DM8KR1E, B00OBF5NRA.

Specifications:

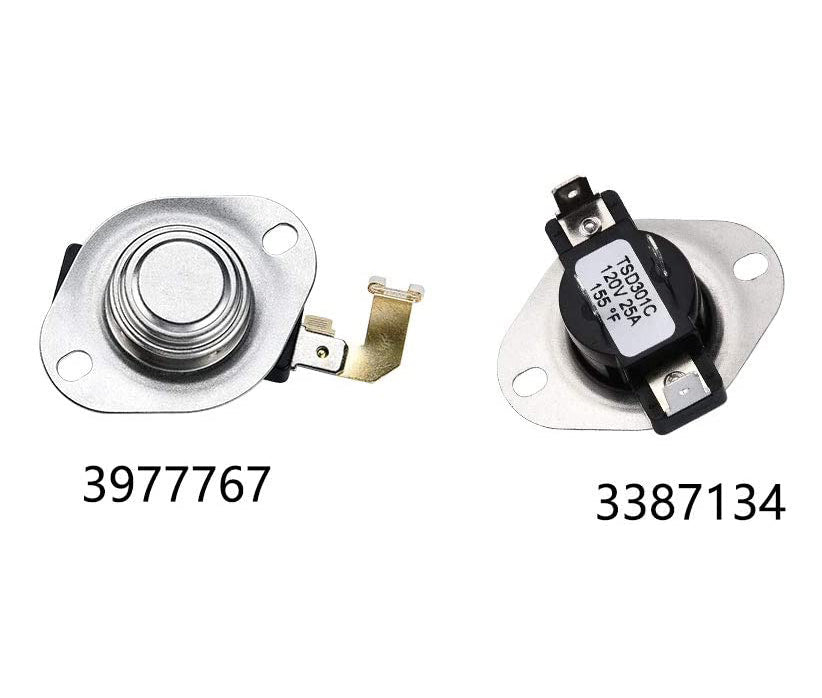

3387134 cycling thermostat:

• Internal bias heater.
• Approx. 2"L x 1.5"W.
• L155-25 SPST.
• Opens at 155°F, closes at 130°F.
• 120 volt heat anticipator.

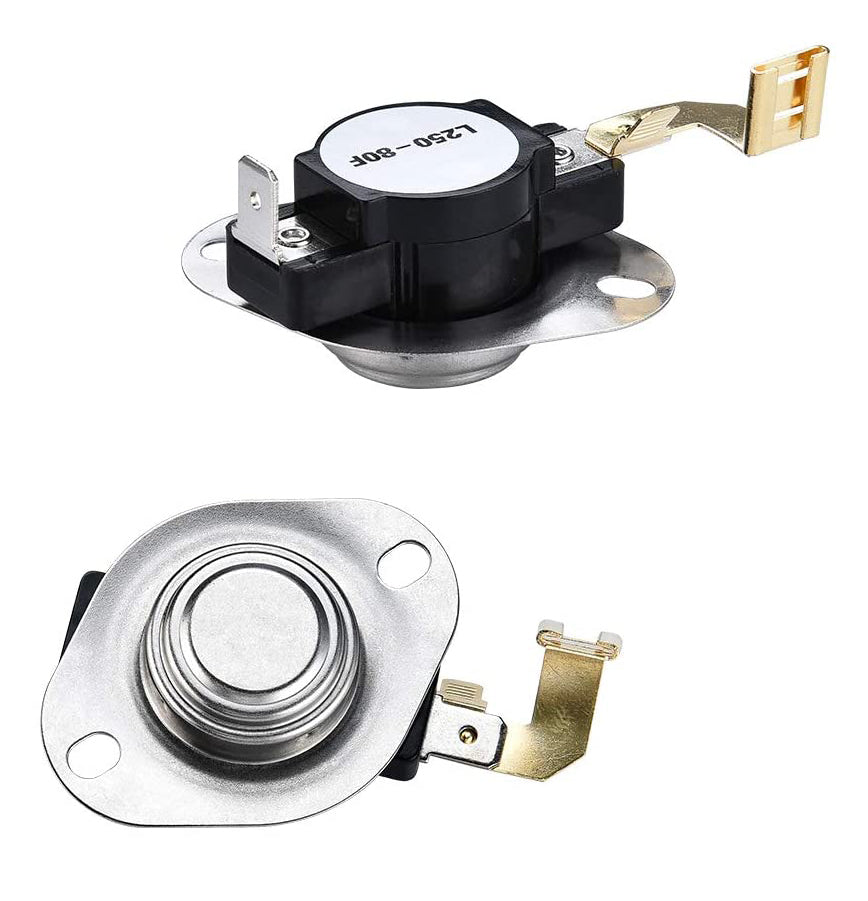

3977767 hi-limit thermostat:

• L221-80.
• 3 wire: 1/4" male, 3/16" male, 1/4" female.
• Comes with extended 'push-on' terminal arm.
