Samsung DC97-16782A DC93-00634A Dryer Roller & Pulley Repair Kit

Replacement rollers, idler pulley, idler spring, and belt kit used on some Samsung dryer models.

Directly Replaces: DC97-16782A, 2027851, DC97-07523A, DC97-07523B, PS4221885, AP5325135, B00VIYJ8Y6, DC93-00634A, AP6038887, DC96-00882B, DC96-00882C, PS11771601, 6602-001655, AP4373659, 6602-001314, 1935594, DC61-01215B, AP4211487, 2069087, PS4206154.

Specifications:

• Kit includes (4) DC97-16782A replacement drum rollers, (1) DC93-00634A pulley replacement, (1) 6602-001655 belt replacement, and (1) DC61-01215B idler spring replacement.

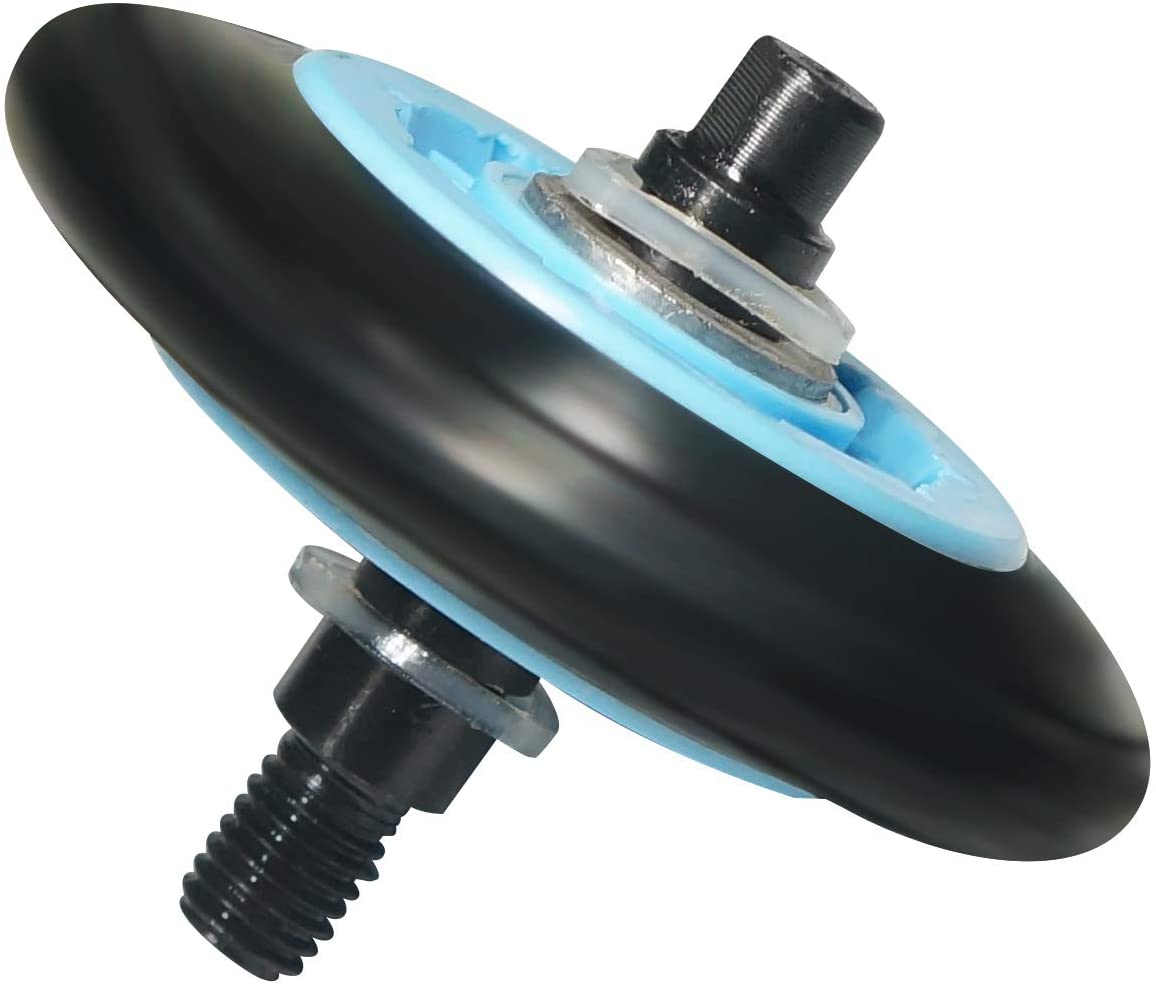

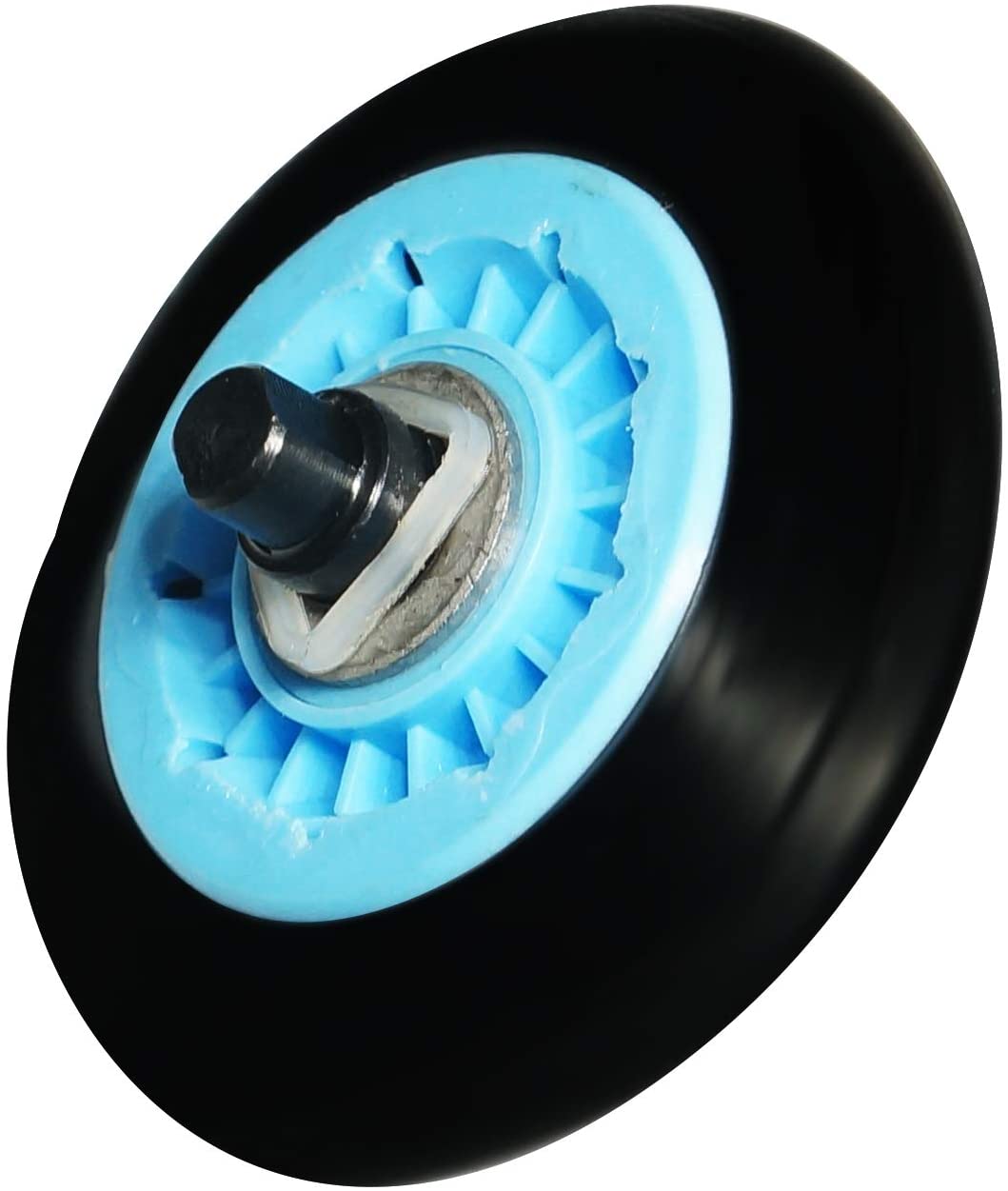

• Rollers are approx. 3.25" diameter. Axle is approx. 2.75"L.

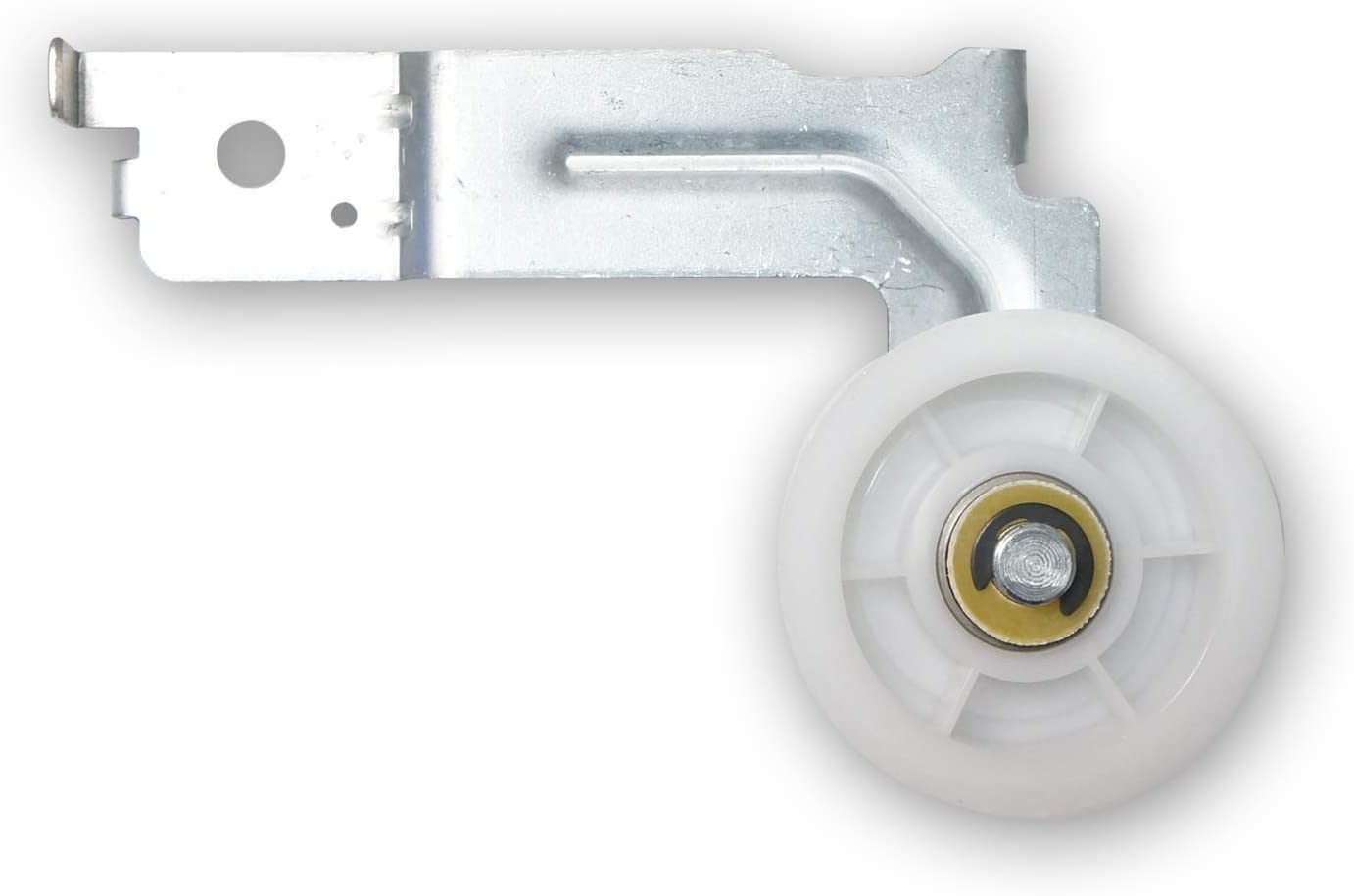

• Idler is approx. 6"L x 4"W.

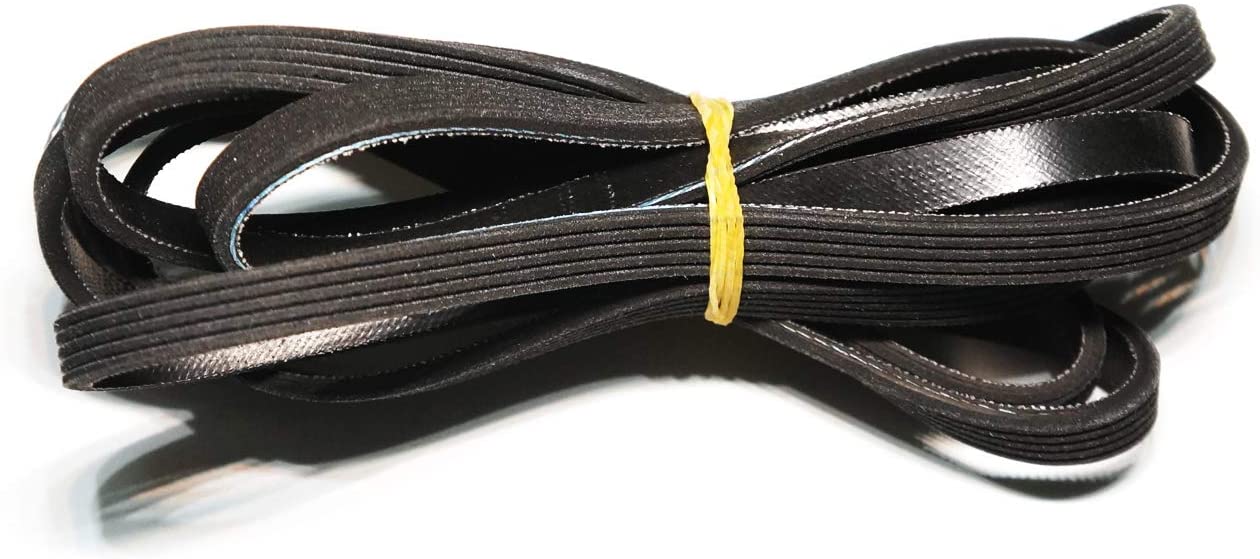

• Belt is approx. 92"L x .3"W., with 5 Ribs and 4 Grooves.
• Idler tension spring is approx. 2.75"L.

How-To Video:
Idler Pulley Replacement
Dryer Belt Replacement
