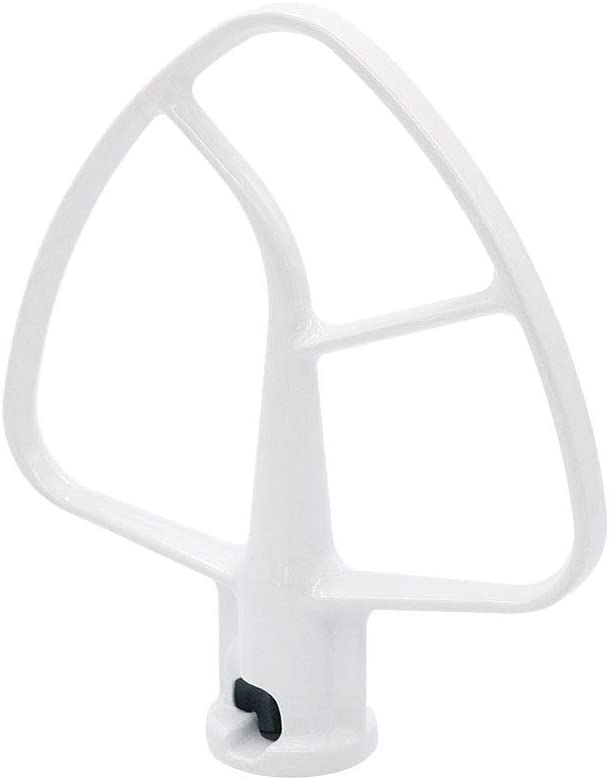

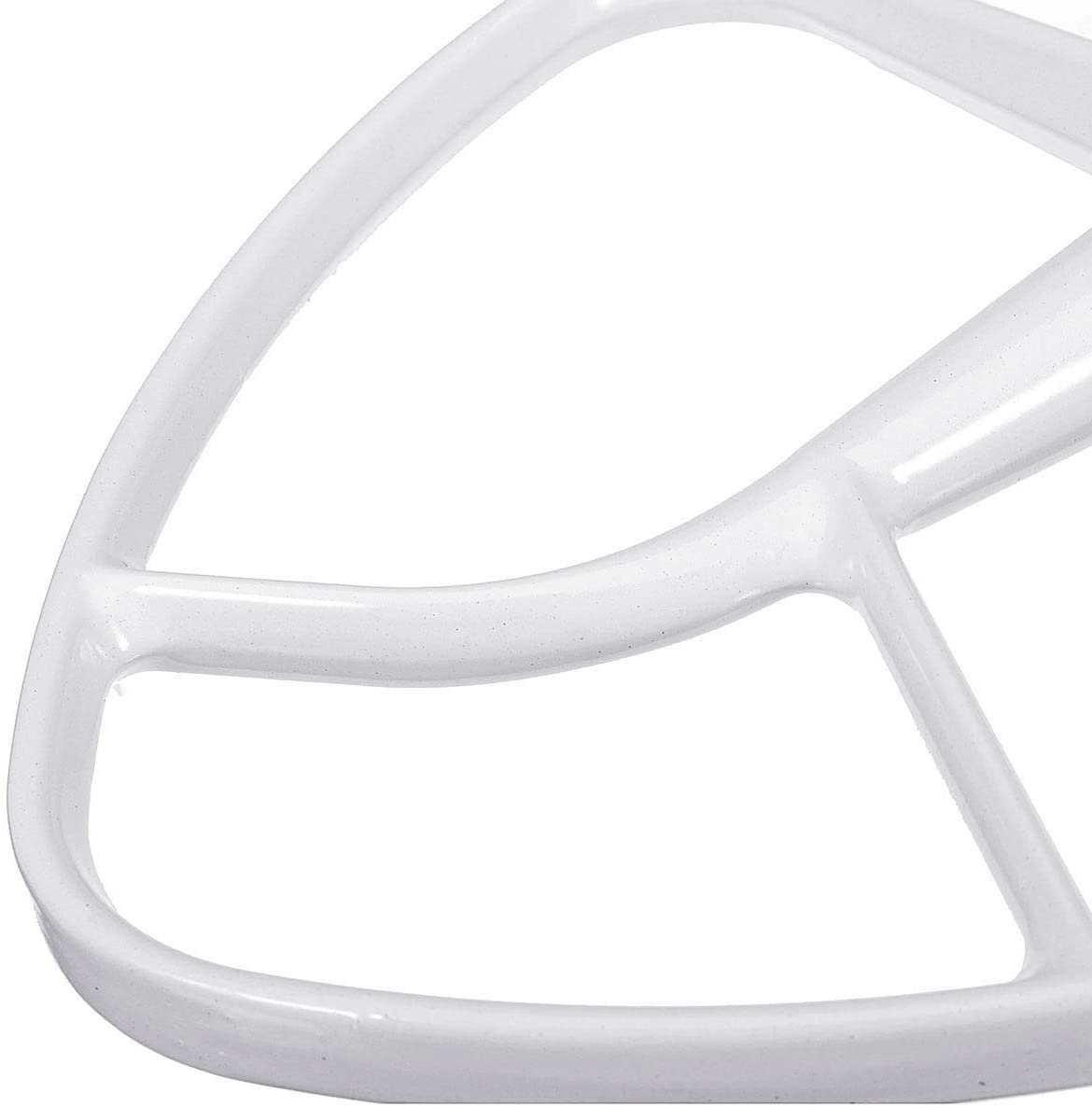

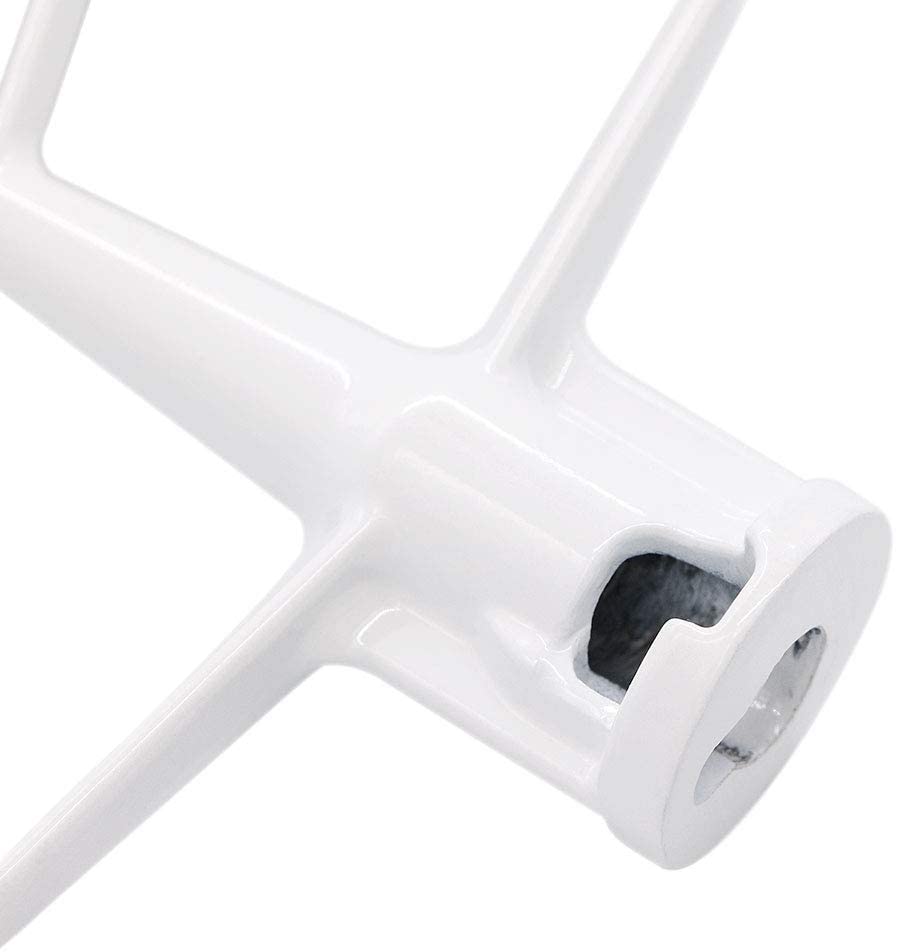

KitchenAid W10672617 Mixer K45B Coated Flat Beater Replacement

Replacement flat beater used on some KitchenAid and Whirlpool tilt-head mixer models.

Directly Replaces:WPW10672617, K45B, W10672617, 9708470, 9708472, 4162163, 4169986, 9707669, PS11757063, W10687981, AP6023717, B008DJXXR2, B017ARYD6W, B00F5NV5L0, B001HNIJXE, B01E519HG2, B008DK51O4, B008DJYG2I, B00DNCCTJW,SAPW10672617.

Features:

• The flat beater is recommended for normal to heavy mixtures, such as cakes, quick breads, cookies, biscuits, candies, mashed potatoes, creamed frostings, meat loaf, and pie pastry.
• Nylon coated for durability.
• Top rack dishwasher safe.

Specifications:

• 4.5 Qt. Tilt-Head, Coated, Flat Beater.
• White.
• Approx. 6"H x 5.25"W.

Beater/Whip to Bowl Clearance

Per the manufacturer the mixer attachments should not touch the bottom of the bowl. If the attachment hits the bottom or sides of the bowl, it may cause the attachment to warp or enamel to chip off. If, after installation, the attachments are touching the bottom of the bowl OR are too far away you can adjust the clearance on your mixer:

Tilt Head models:

1. Turn speed control to "O".
2. Unplug the mixer.
3. Lift motor head.

• To RAISE the attachment: Turn screw SLIGHTLY counter-clockwise.
• To LOWER the attachment: Turn screw SLIGHTLY clockwise.
• Adjust the beater so that it just clears the bowl. If you over adjust the screw, the bowl lock lever may not lock into place.

NOTE:When properly adjusted, the beater will not strike the bottom or sides of the bowl when in use. If the beater or whip strikes the bowl when in use, the enamel coating may wear/chip off the beater or the wires of the whip may become warped.
